Type C Aluminum Honeycomb Wall Board
Due to the existence of internal empty honeycomb structure, aluminum honeycomb panel has a certain absorption and isolation effect on sound waves.
Aluminum honeycomb panels have good corrosion resistance, can be used for a long time in wet or corrosive environments.
Aluminum honeycomb panel has high surface flatness, good decorative effect and beautiful appearance.
Aluminum honeycomb panels have low density and high tensile strength, the structure is lightweight but can provide sufficient support and load-bearing capacity.
Aluminum honeycomb panel internal honeycomb structure has good heat insulation and thermal insulation performance, which helps to reduce the energy consumption of the building.
Overview
The Type C Aluminum Honeycomb Wall Board is a versatile composite panel designed for applications where a combination of structural lightness, visual appeal, and environmental durability is required. Its unique honeycomb core provides a high strength-to-weight ratio, making it particularly suitable for marine interior wall and ceiling systems.
Process:
1. Choose high quality aluminum as raw material, the higher the purity of aluminum, the better the performance of aluminum honeycomb panel.
2. Process the aluminum into honeycomb structure through special craft, which is light and strong.
3. The surface of aluminum honeycomb panel needs special treatment, such as cleaning, polishing, coating, etc., to improve its oxidation resistance, corrosion resistance and beauty.
4. Aluminum honeycomb panels are assembled with brackets, connectors and other components to form a complete aluminum honeycomb panel structure.
5. The advantages of aluminum honeycomb panels include light weight, high strength, high stiffness, good sound absorption performance, and high seismic resistance.
Key Features
Excellent Strength-to-Weight Ratio: The aluminum honeycomb core provides exceptional rigidity and load-bearing capacity while keeping the panel remarkably lightweight, reducing overall structural weight.
Superior Corrosion Resistance: Treated aluminum surfaces ensure long-term performance in humid marine environments, resisting rust and degradation.
Enhanced Acoustic & Thermal Performance: The cellular structure helps dampen sound waves and reduces heat transfer, contributing to a more comfortable and energy-efficient cabin environment.
High-Quality Aesthetic Finish: Offers a smooth, flat surface ideal for modern interiors. Available with various coatings (PVDF, polyester) in multiple colors and finishes to meet design specifications.
Durable & Low Maintenance: The robust construction and resistant finishes ensure longevity with minimal upkeep.
Note: The "Type C" designation refers to a specific profile or connection system within our aluminum honeycomb panel range, designed for easy installation and seamless integration with standard marine partition frameworks.
Main Data
Type | B25CL |
Fire Class | B-0 |
Weight | 10.0kg/㎡ |
Product Sound Reduction | 53dB |
Thermal Transmittance | 3.35Kcal/㎡h℃ |
Core Material | Aluminum honeycomb |
Surface Finish | PVC film or Galvanized steel |
Dimension | 25mm(t)*550mm(w)*length(max.3500mm) |
Tolerances | Thickness°-1*Width°-1*Length±3 |

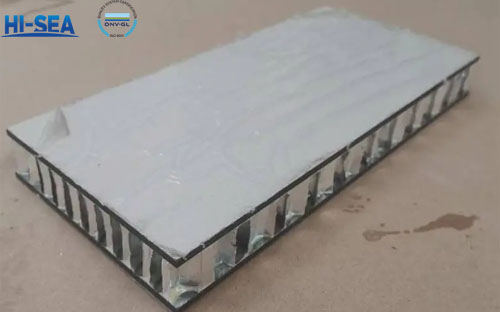

Picture:
