H1 Type Bracket for Small Shaft Transmission Gear

The H1 type bracket is a "standard bracket" mainly used for rotating small shafts with a square head of 9-36mm.

Its specifications typically range from 12.0 to 42.0mm, and it uses Q235 steel as the main material.

Reference Drawing

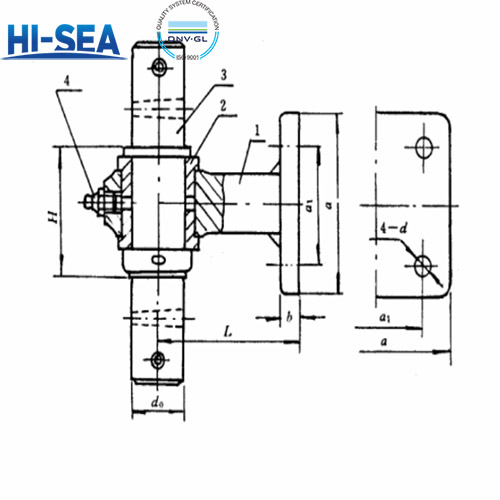

Reference drawing of H1 Type Bracket for Small Shaft Transmission Gear.jpg

1. Support linkage

2. Bushing

3. Small shaft

4. Injection oil cup

Reference Date

Small shaft round head diameter d0	Bracket Connection Size				Length	Height
Small shaft round head diameter d0	a	a1	b	d	L	H
12.0	60	35	8	11	58	38
18.0	60	35	8		58	38
21.0	70	45	10		70	44
27.0	80	50	10	13	70	50
33.0	90	58	12		87	59
38.5	100	65			97	68
42.0	110	76			112	73
