G80 Special Clevis C Hook
G80 Special Clevis C Hook – Heavy-Duty Lifting for Marine & Industrial Applications. Designed specifically for demanding shipboard cargo handling, warehouse operations, and heavy lifting environments, our G80 Special Clevis C Hook combines strength, safety, and smart geometry.
Overview
Key Features & Benefits
High-Strength G80 Grade – Manufactured from quenched and tempered alloy steel through integral forging.
Minimum breaking load is 4 times the working load limit (WLL), ensuring a generous safety margin.
Rigorously Tested – Each hook is individually proof tested at 2.5× WLL, batch fatigue tested up to 20,000 cycles, and 100% magnetic particle inspected.
Corrosion-Resistant Finish – Plastic-coated (RAL3020 red or RAL1003 yellow) for excellent rust and corrosion resistance in marine environments.
Technical Range
Item: SLR024 G80 Special Clevis C Hook
Working Load Limit (WLL): 2 t – 8 t
Breaking Load (BLL):8 t – 32 t
Compatible with G80 grade chain and synthetic/chain slings
CE & GS Certificate

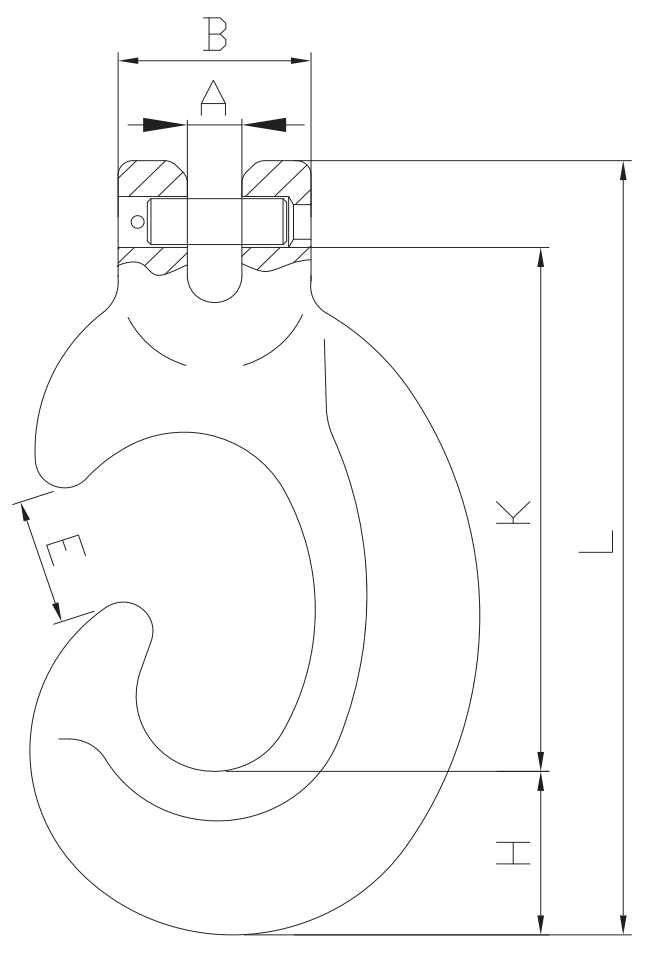

.png "G80 Special Clevis C Hook (2).png")
| ITEM NO. | WEIGHT (kg) | WLL (T) | B.L (T) | A±0.5 | B±1.5 | E±1 | H±1 | K±2 | L±2.5 |
| SLR24-7/18 | 0.57 | 2 | 8 | 9.5 | 35 | 20 | 28 | 90 | 136 |
| SLR24-10 | 1.4 | 3.15 | 12.6 | 13 | 46 | 29.5 | 39.5 | 127 | 189 |
| SLR24-13 | 3 | 5.3 | 21.2 | 16.5 | 59 | 39.5 | 52 | 166.5 | 246 |
| SLR24-16 | 5.42 | 8 | 32 | 18.5 | 72 | 46.5 | 59 | 206 | 298 |
