G80 Lashing Type C Hook With Spring Pin
Our G80 Lashing Type C Hook is engineered for maximum security in demanding rigging, lifting, and towing applications. The integrated spring pin provides a reliable safety latch, ensuring the connection stays secure under dynamic loads. As a Grade 80 lifting hook, it offers an excellent strength-to-weight ratio, making it a superior choice for construction, shipping, marine, and heavy transport industries.
Overview
Item: SLR 071 G80 Lashing Type C Hook With Spring Pin
Material: Alloy Steel
Surface finish: Powder plasticized
Technique Procedure: Forged super alloy steel- Quenched and Tempered Breakage test
Safety Factor: 4:1 for chain sling (Ultimate load is 4 times the Working Load Limit)
Feature:
G80 Chain Compatibility: Specifically designed to work with high-strength G80 lashing chains.
Rapid Assembly: The spring pin design allows for fast and tool-free connection, saving valuable time on the job.
Superior Forged Construction: Built from premium alloy steel through a forging process, ensuring maximum durability and load integrity.

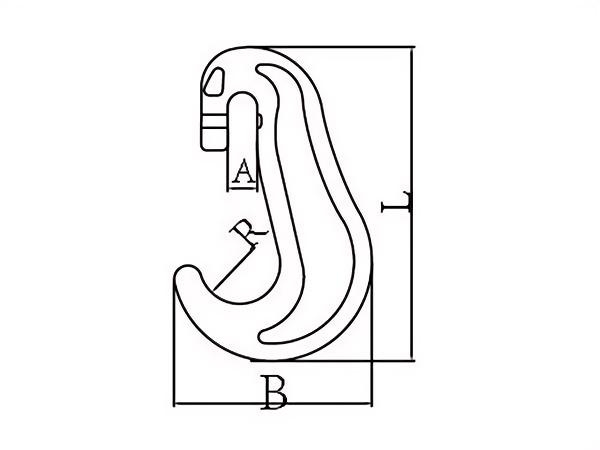

| Sizes | Weight (kg) | Woring Load Limit (t) | Breaking Load (t) | L±2 | A±0.3 | B±1.5 | R±1 |
| 9MM | 0.5 | 2.5 | 10 | 143 | 13.5 | 90.5 | 18.5 |
| 11MM | 0.85 | 3.75 | 15 | 177 | 15.5 | 109.5 | 22 |
| 13MM | 1.38 | 5.4 | 21.6 | 205 | 17.7 | 129 | 25.5 |
