G80 Eye Foundry Hook

The G80 Eye Foundry Hook is a high-performance lifting point designed for heavy-duty marine, offshore, and industrial applications. Manufactured from forged super alloy steel, quenched and tempered for maximum strength and toughness, this hook offers an exceptional balance of compact geometry and certified reliability.

Overview

Key Features & Benefits

High-Strength G80 Grade – Made from premium alloy steel through integral forging and heat treatment.
The working load limit (WLL) provides a 4:1 design factor, ensuring a generous safety margin for demanding lifts.
Rigorously Tested for Safety – Every hook is individually proof tested at 2.5× WLL. Batch samples undergo fatigue testing at 1.5× WLL for 20,000 cycles and breakage testing to validate destructive strength. 100% magnaflux (magnetic particle) crack detection ensures zero critical defects.
Durable Corrosion Protection – Finished with powder plastified coating (RAL3020 red or RAL1003 yellow), providing excellent resistance to rust, seawater splash, and industrial wear.

Technical Specifications:

Item: SLR015 G80 Eye Foundry Hook
Working Load Limit (WLL): 1.6t – 32.8 t (varies by size)
Material: Quenched & tempered forged alloy steel
Proof Load: 2.5 × WLL
Fatigue Test: 20,000 cycles @ 1.5 × WLL
NDT: 100% magnaflux crack inspection
Surface: Powder coated, red RAL3020 / yellow RAL1003

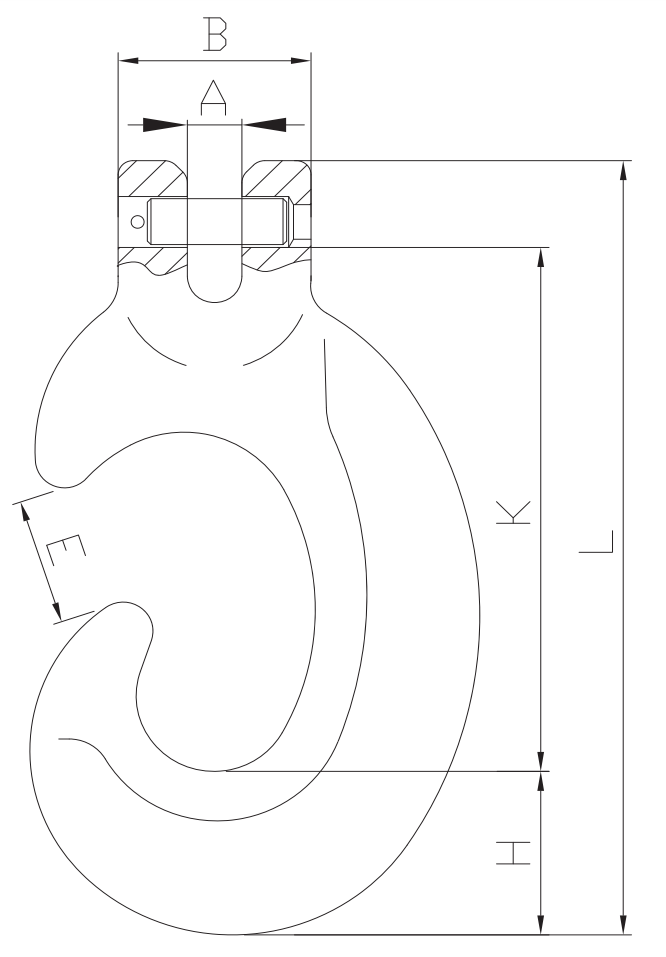

G80 Special Clevis C Hook (2).png

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	E±1.2	A±1	D±1	H±1	M±1	N±0.5	K±2	L±2
6	1.09	1.6	6.4	63.5	39	18	31	25.4	18	120	163
8	1.09	2	8	63.5	39	18	31	25.4	18	120	163
10	2.03	3.2	12.8	76	50.8	22	38	32.6	23	146	200
13	3.22	5.4	21.6	89	63.5	27	44.5	38.1	27	171	238
16	5.26	8.2	32.8	102	76	32	52	46	32	198	278
20	9.1	12.8	51.2	114.5	89	38	65	55.9	39	232	325
22	11.3	15.5	62	127.5	102	45	69	57	40	256	361
26	16.8	21.6	86.4	140	126	66.5	77	66	45	283	402
32	26.6	32.8	131.2	153.5	151.5	81.5	97.5	80	58	327	461
