G80 Clevis Self-locking Hook
Forged super alloy steel- Quenched and Tempered.
Suitable for EN818-2 G80 chain.
Individually proof test at 2.5 times Working Load Limit.
Fatiuge tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection.
All load pins are 100% individually inspected and tested
Surface finish:Powder plastified
Colour code:Red RAL3020, Yellow RAL1003.
With selflock device
Overview
Item: SLR082 G80 Clevis Self-locking Hook

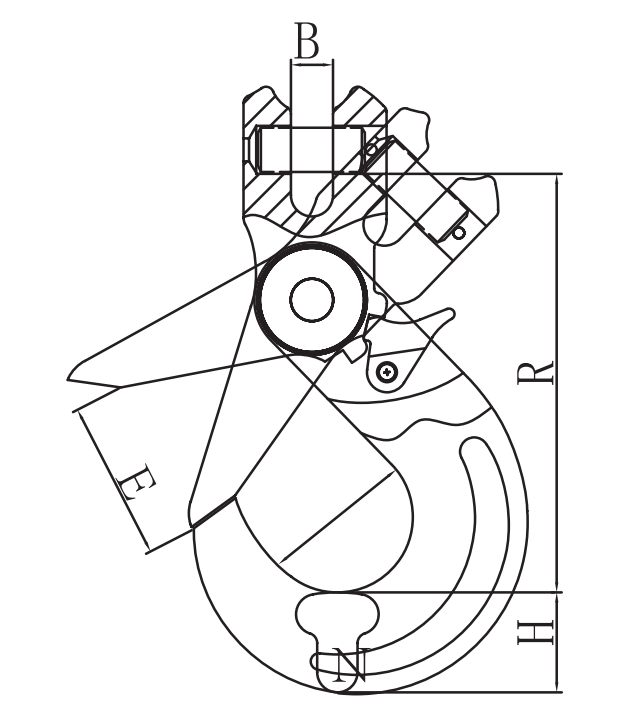

| Chain Size | WEIGHT (KG) | WLL(T) | B.L(T) | E±2 | B±0.5 | H±1 | N±1.5 | R |
| 6 | 0.5 | 1.12 | 4.48 | 29 | 8.5 | 19.5 | 34 | 95.5 |
| 7/8 | 0.8 | 2 | 8 | 34 | 9.5 | 24 | 46 | 121 |
| 10 | 1.5 | 3.15 | 12.6 | 44 | 12 | 30 | 56 | 146 |
| 13 | 2.8 | 5.3 | 21.2 | 52 | 15 | 40 | 69 | 182 |
| 16 | 5.6 | 8 | 32 | 60 | 18 | 50.5 | 86 | 218 |
| 20 | 7.5 | 12.5 | 50 | 83 | 25 | 55 | 100 | 240 |
| 22 | 11.5 | 15 | 60 | 88 | 25.5 | 67 | 98 | 276.5 |
| 26 | 18.5 | 21.2 | 84.8 | 95.5 | 30 | 75 | 110 | 310.5 |
| 32 | 49.1 | 31.5 | 126 | 160 | 36 | 97 | 166 | 400.5 |
