Forged Swivel Hook
Our Forged Swivel Hook is designed for applications where hook orientation needs adjustment without load. The swivel mechanism operates smoothly under non‑load conditions, allowing the hook to rotate freely for easy attachment and positioning – a valuable feature on ship decks, cranes, and rigging systems.
Overview
Product details:
Item: SLR132 Forged Swivel Hook
Forged alloy steel or carbon steel.
Breakage test
100% magnaflux crack detection
With safety latch
Surface finish:Powder plastified
Colour code: Red RAL3020; Yellow RAL1003
Alloy steel: Ultimate load is 4.5 times the Working Load Limit
Carbon steel:Ultimate load is 5 times the Working Load Limit
Can be Rotated under Non-load Conditions!

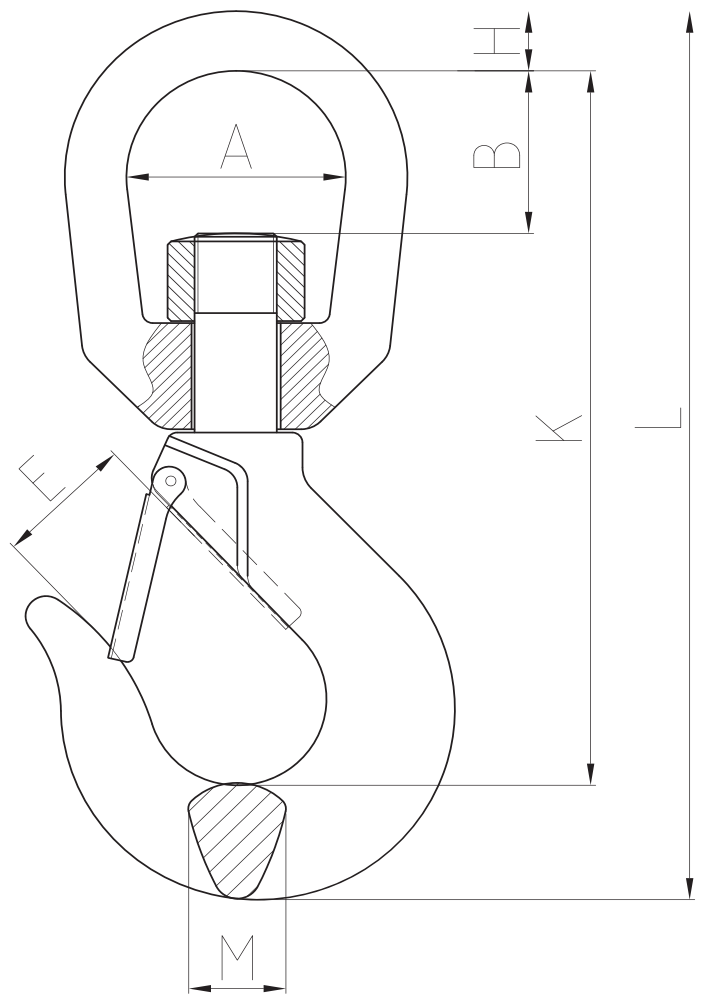

.png "Forged Swivel Hook (2).png")
| ITEM NO. | WEIGHT (kg) | ALLOY | CARBON | A±1 | B±2 | E±2 | H±0.6 | K±4 | L±5 | M±1 | ||
| WLL (T) | B.L (T) | WLL (T) | B.L (T) | |||||||||
| A0.75T/C0.5T | 0.3 | 0.75 | 3.375 | 0.5 | 2.5 | 32 | 22.5 | 17 | 9 | 110 | 137 | 15 |
| A1T/C0.75T | 0.34 | 1 | 4.5 | 0.75 | 3.75 | 32 | 22.5 | 17 | 9 | 108 | 136 | 16 |
| A1.5T/C1T | 0.64 | 1.5 | 6.75 | 1 | 5 | 37.5 | 29.5 | 22.5 | 12 | 130 | 163.5 | 17.5 |
| A2T/C1.5T | 1.05 | 2 | 9 | 1.5 | 7.5 | 42.5 | 33 | 21.5 | 15.8 | 150 | 192 | 21 |
| A3T/C2T | 1.24 | 3 | 13.5 | 2 | 10 | 42.5 | 33 | 26 | 15.8 | 163 | 209 | 23 |
| A5T/C3T | 2.3 | 5 | 22.5 | 3 | 15 | 48 | 39 | 32.5 | 18 | 191 | 246 | 33 |
| A7T/C5T | 4 | 7 | 31.5 | 5 | 25 | 64 | 53 | 43 | 21.5 | 243.5 | 313 | 34 |
| A11T/C7.5T | 7.09 | 11 | 49.5 | 7.5 | 37.5 | 68 | 53 | 49.5 | 26 | 277 | 364 | 41.5 |
| A15T/C10T | 12.77 | 15 | 67.5 | 10 | 50 | 79 | 62 | 54.5 | 32 | 332 | 431 | 55.7 |
| A22T/C15T | 24.5 | 22 | 99 | 15 | 75 | 105 | 108 | 87 | 40 | 427 | 543 | 70 |
| A30T/C20T | 34.5 | 30 | 135 | 20 | 100 | 105 | 96 | 97.5 | 40 | 465 | 596 | 76.2 |
Regularmark:
Carbon steel: SWL1T CE SLR+BATCH NUMBER
Alloy steel: ALLOY WLL1T CE SLR+BATCH NUMBER
