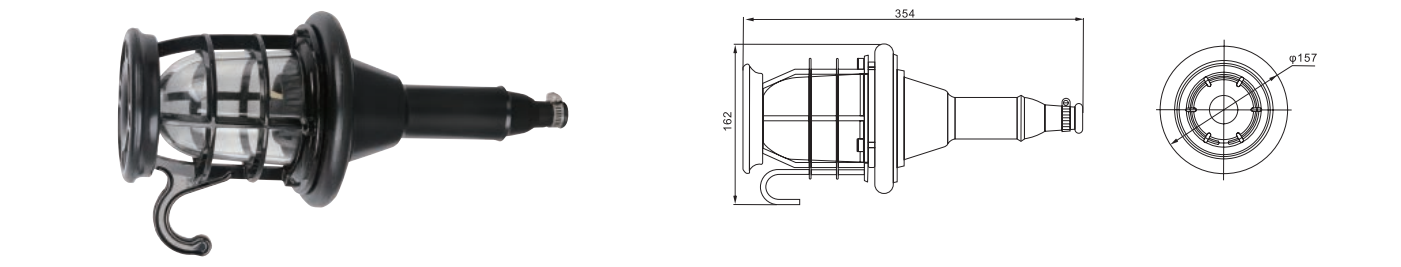

Explosion-proof Portable Light

Marine explosion proof portable lights feature robust construction to contain internal explosions safely and are portable for easy transport and use in various locations on ships, offshore platforms, or other marine facilities. These lights meet stringent safety standards and regulations for hazardous locations, providing reliable and safe illumination while minimizing the risk of ignition in potentially dangerous marine settings. We have good quality explosion proof portable lights, if you have orientation, contact us at any moment.

Overview

Standard: GRADE ENTRY NORMS FOR STEEL SHIPS, National standard GB3836-2000, GB12045, En50014, En50018, En60079.

Application

Widely used for overhaul the illumination on various marine platforms, chemical tankers, LNG ships and hazardous cargo wharves, etc.
Can reliably work in severe environment exposed in moisture, vibration or corrosion
Explosive hazardous atmosphere Zone 1, Zone 2

Characteristics

1. The handle adopts good quality rubber, good quality toughened glass lampshade with guard.

2. The lamp body adopts seal structure, has high waterproof performance andanticorrosive performance, fit for illuminating temporary work place used for checking and repairing ship or loading or unloading goods.

Type	Ex-proof mark	Voltage	Power	Illuminant	Lamp holder	Protection class
CFS1	Exed II AT2	220V/24V	100W/60W	Incandescent	E27	IP56
BSX-A40	Ex db ed IIC T4 Gb	AC 220V/230V	40W	Incandescent	E27	IP66
BSX-A60			60W
BSX-A100			100W
BSX-ESL15			≤15W	Energy saving lamp
BSX-LED3			3W	LED
BSX-LED5			5W
BSX-LED8			8W
