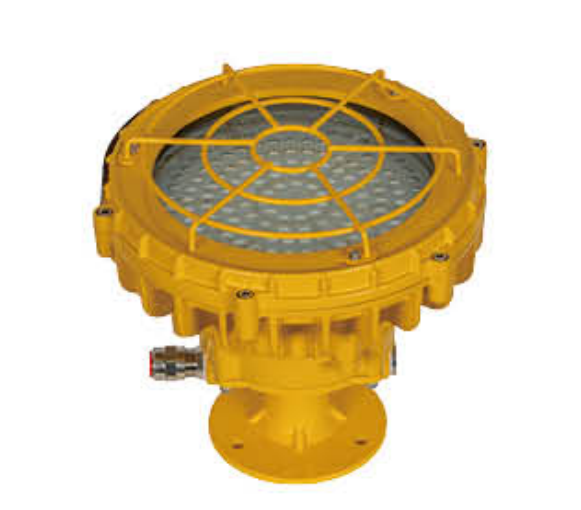

Ex-proof Platform Flood Light
Explosion-proof platform flood lights provide the illumination for the passage in the flammable and explosive environment or sea oil platform. These flood lights are built with rugged and durable materials, and they are sealed to prevent the entry of hazardous substances. They provide powerful and wide-area illumination to enhance visibility in critical work areas while ensuring safety by minimizing the risk of ignition.
Overview
Characteristics
1. The shell adopt good quality cast brass alloy materiall, with spraying plastics on surface.
2. The outside tighten screw is stainless steel material.
3. The lampshade has the function of temperature resistance shake up.
Specification
Type | CFD13 | |
Explosion-proof mark | Ex de IC T6 Gb | |
Rated voltage | AC100-240V50/60Hz | |
Power | 50W | 80W |
Power factor | ≥0.9 | |
Illuminant | LED | |
Illuminant color | White | |
Illuminant life | ≥50000h | |
Luminous flux | 4800lm | 9000lm |
RA | ≥70 | |
Color temperature | 4000K-5700K | |
Protection class | IP66 | |
Cable outside diameter | Ø10～Ø12 | |
Installation method | Ceiling type,Pendant type,Wall type,Flange type,etc. | |
Ambient temperature | -30℃~+55℃ | |
Lamp body material | Aviation aluminium | |
Lamp shade material | Toughened glass | |
Weight | 7.5Kg | |
Remarks | G3/4 pipe joint is optional | |
Installation type show
Pendant Ceiling Bracket type
