D Type Universal Joint
Universal joint is a connector that connects two levers. The joint consists of a pair of ordinary hinges with a 90° orientation relative to each other, allowing the levers to turn in any direction. It is still widely used in the small shaft transmission system of ships.
Overview
Technical Parameters
Material: Carbon steel or stainless steel (e.g., 304, 316)
Shaft Diameter Range: 8-50mm, suitable for various transmission needs.
Nominal Torque: Up to 2000 N·m, meeting the requirements of heavy-duty ships.
Applicable Media: Oil, seawater, fresh water, etc., pressure resistance 1.6-10MPa
Installation and Maintenance
Installation Angle: Single-section type allows flexible rotation within 37°, double-section type can compensate for greater displacement.
Maintenance Points: Regularly check the sealing performance to avoid seawater corrosion; for stainless steel models, pay attention to the wear of key/pin connections.

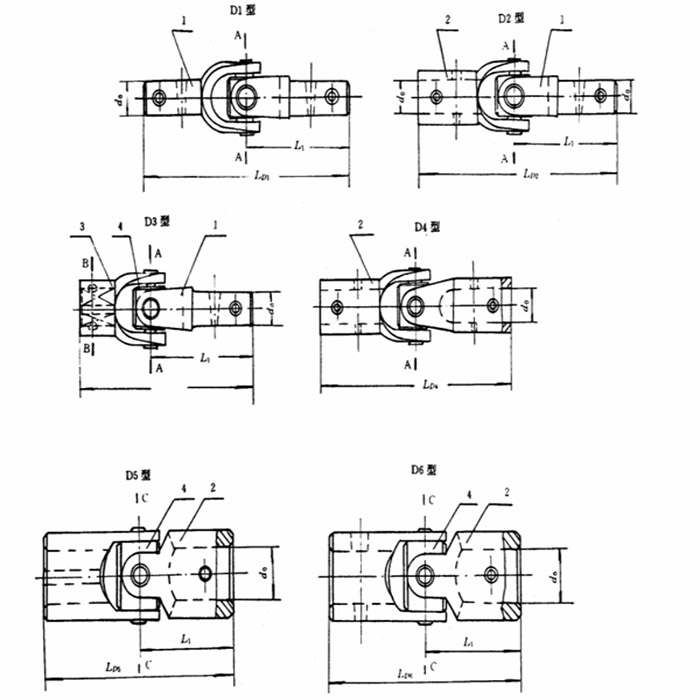

Main Categories/Refrence Drawing
Main Categories
Type | Application |
D1 | Universal joints for Pipes |
D2 | Universal joints for pipes and shafts |
D3 | Universal joints for pipes and inner square head |
D4 | Universal joints for shafts |
D5 | All stainless steel universal joint (key connection) |
D6 | All stainless steel universal joint (pin connection) |
