A2 Handwheel-driven Deck Control Head

Technical Parameters

Application: Small shaft transmission devices with a control spindle square head side length of 9~36mm

Small shaft round head diameter: 12.0~42.0mm

Weight: 2.2~31.0kg

Material: Stainless steel, carbon steel

Materials:

Control head body: Cast steel ZG230-450

Control rod: Carbon steel Q235

Indicator column: Tin brass HSn62-1

Welding base plate: Carbon steel Q235

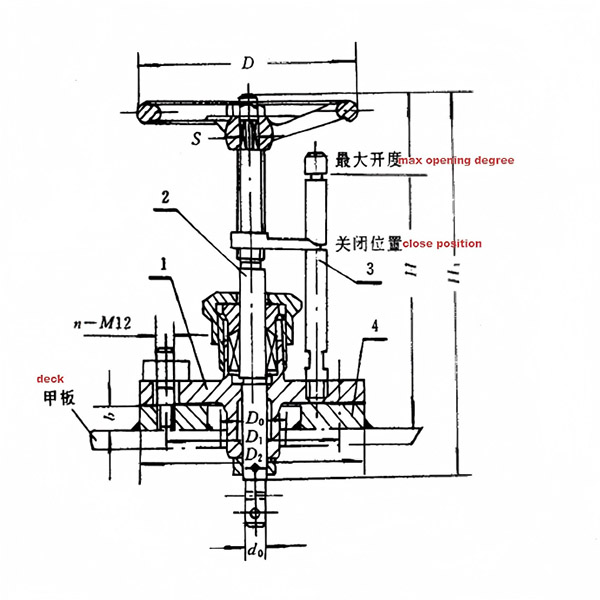

Reference Drawing:

Reference drawing of A2 Handwheel-driven Deck Control Head.jpg

1--control head body 2--control rod 3--Indicator column 4--Welding base plate

Datasheet:

Small shaft round head diameter d0	Welding base plate connction size				Handweel size		Structure size		Deck opening Diameter D0
	Diameter		Thickness b	Bolts n	D	S	H	H1
	D1	D2
12.0	94	122	12	4	100	9	162	179	36
18.0					140	12	177	200	48
21.0					180	14	202	225
27.0	130	158	15	6	225	19	240	268	55
33.0					280	24	259	294	75
38.5	148	175		8	360	27	280	322	84
42.0					450	32	324	377
