A1 Deck Sleeve Control Head

The A1 type deck control head is a component of a marine shaft drive system, primarily used in ship operating systems, and features stroke indication functionality.

Overview

Model and Standard

Model: Type A1, full name is“Deck Sleeve Control Head with Stroke Indicator".

Standard: Complies with CB/T3791-1999 Marine Small Shaft Transmission Device Standard.

Technical Parameters

Small Shaft Round Head Diameter: 12.0~42.0mm.

Small Shaft Square Head Side Length: 9~32mm.

Weight: 5.6~17.5kg.

Product Features

Stroke Indicator: Real-time display of operating stroke for easy monitoring.

Material Customizable: Different material versions are available upon request.(carbon steel, stainless steel)

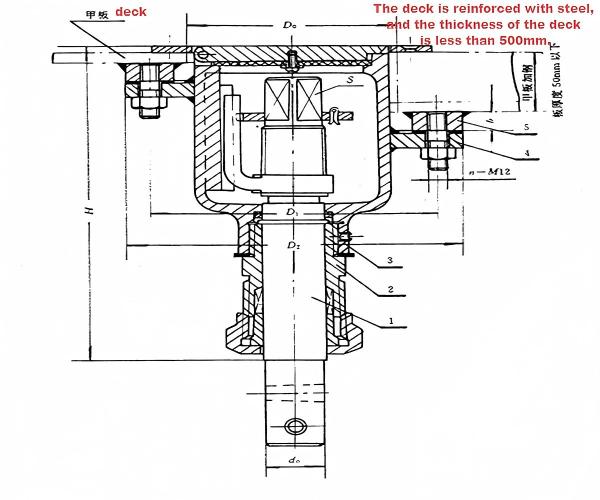

Reference Drawing:

Reference drawing of A1 Deck Sleeve Control Head.jpg

1--control lever 2--gland body 3--control head body 4--flange 5--welding seat plat

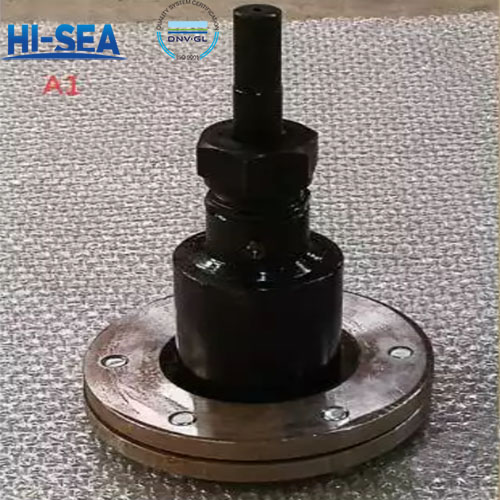

Product Showing:

A1 Deck Sleeve Control Head1.jpg
