70mm Elec. Combined Windlass

70mm Elec. Combined Windlass

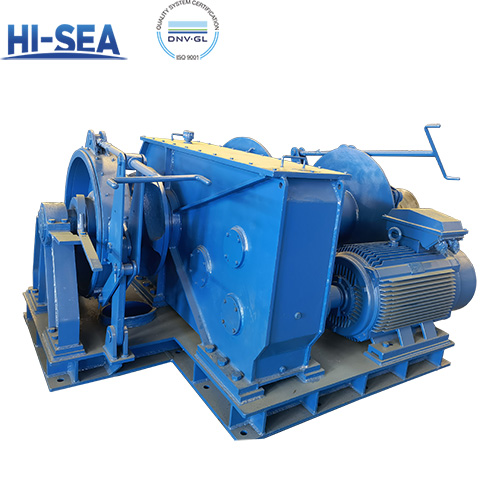

70mm Elec. Combined Windlass features compact structures and robust construction, and it is widely used on passenger ships, oil tankers, liquid cargo ships, ro-ro ships, and so on. It consists of one gypsy, one drum, electric motor, gearbox, warping head, brake, clutch, control system, etc. It can be used as the anchor windlass for anchoring, as well as the winch for mooring. Approved by CCS, BV, RINA...

1. Driven by electric motor

2. Manual brake and clutch

3. Advanced control system

4. Durability, reliability and versatility

5. Easy for maintenance, long lifespan.

Overview

Main Technical Parameter

Anchor chain diameter(AM2): 70mm                       Working load of gypsy: 208.3kN                      Overload of gypsy: 312.5kN

Support load of gypsy: 1161kN                                Nominal speed: ≥9m/min                                Drum load: 100kN

Drum nominal speed: ≥9m/min                               Drum support load: 300kN                              Cable diameter: 80mm

Drum capacity: ≥190m                                             E-motor type: JZ2-H71-4/8/16                         E-motor power: 45/45/30kW

E-motor speed: 1700/810/380r/min                        Duty: 10/30/5min                                              Power supply: 440V/60Hz

Drawing for 70mm Marine Elec. Combined Windlass

Drawing for 70mm Elec. Combined Windlass.jpg
