60kN Marine Hydraulic Double Drum Single Warping Head Winch
60kN Marine Hydraulic Double Drum Single Warping Head Winch is efficient, reliable, and durable for mooring, towing and handle other marine tasks, which is popular on lots of vessels. Approved by CCS, BV, RS...
1. Driven type: hydraulic
2. Manual brake and clutch
3. Compact structure
4. Quite and safe transmission
5. Corrosion-resistant layer
Overview
Main Technical Parameters:
Working load of drum: 60kN Cable diameter: 46mm Overload of drum: 90kN
Holding load of drum: 200kN Mooring speed: ≥15m/min Light load speed: ≥30m/min
Drum capacity: ≥200m System pressure: ~17MPa System flow: ~86L/min

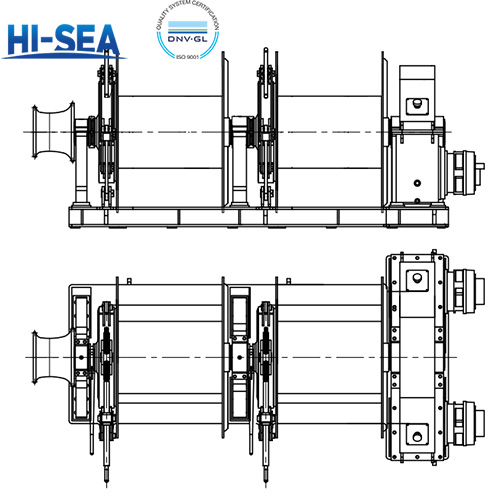

Drawing for 60kN Marine Hydraulic Double Drum Single Warping Head Winch
