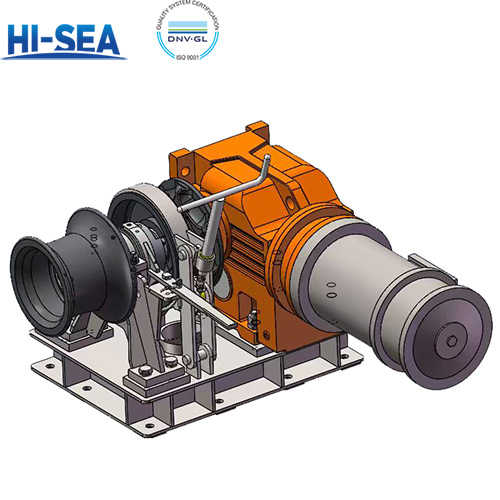

22mm Marine Elec. Single Gypsy Anchor Windlass
22mm Marine Elec. Single Gypsy Anchor Windlass is a mechanical device used on ships to raise and lower anchors. It consists of one gypsy, one warping head, electric motor, clutch, brake, control system, etc. It is powered by an electric motor, making it easier to handle chains and anchors compared to hydraulic or diesel engine anchor windlasses. It is approved by CCS, RS, BV...
1. Driven by electric motor
2. Manual brake and clutch
3. High deck space utilization
4. Continuous working ability
5. With local or remote control
Overview
Main Technical Specification
Anchor chain diameter(AM2): 22mm Working load of gypsy: 20.6kN Anchor-lifting speed: ≥18/9/4m/min
Overload pull of gypsy: 31kN Holding load of gypsy: 126kN Warping head load: 20kN
Cable diameter: 80mm Elec. motor model: JZ2-H41-4/8/16 Elec. motor power: 7.5/7.5/5kW
Elec. motor speed: 1400/665/300r/min Power supply: 415V/50Hz Duty: 10/30/5min
Drawing for 22mm Marine Elec. Single Gypsy Anchor Windlass
