Nitrogen Cylinder and Fire Extinguishing Agent for Marine Deep Fryer with Fire Extinguisher System
The deep fat fryer with integrated fire suppression system is designed, manufactured and tested in accordance with:
SOLAS Consolidated Edition 2009, Chapter II‑2, Regulation 10, Section 6.4
ISO 15371:2009
The product consists of an electric fryer and a fire suppression system, integrated into a single stainless steel structure with its own fume hood and exhaust fan.
The deep fat fryer adopts a wet chemical fire extinguishing system.The extinguishing agent and its discharge mechanism are built into the lower part of the unit.
The appliance can be installed under a common fume hood or directly connected to the kitchen’s main exhaust duct.
The nitrogen cylinder and fire extinguishing agent inside the fire suppression system are classified as dangerous goods for sea and air transportation, which makes export difficult.For this reason, we supply the deep fat fryer with fire suppression system WITHOUT the nitrogen cylinder and extinguishing agent.These components shall be procured locally by the customer.

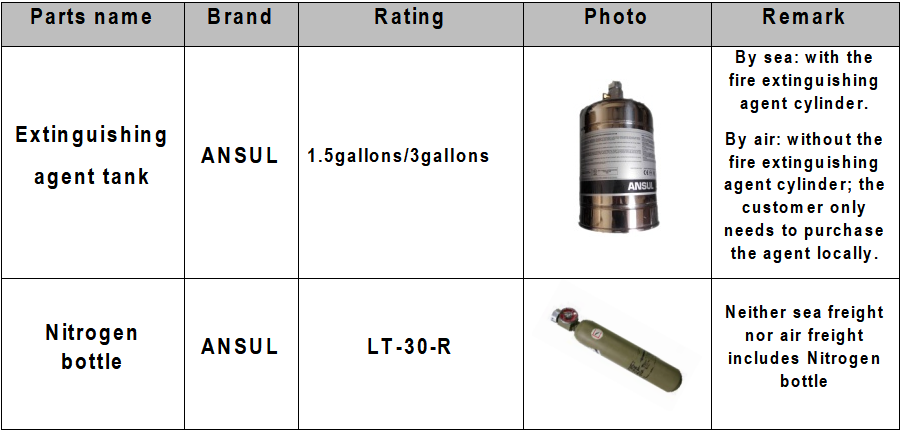

This document describes the nitrogen cylinder and fire extinguishing agent to facilitate the customer’s local procurement and installation.
Overview
Description：

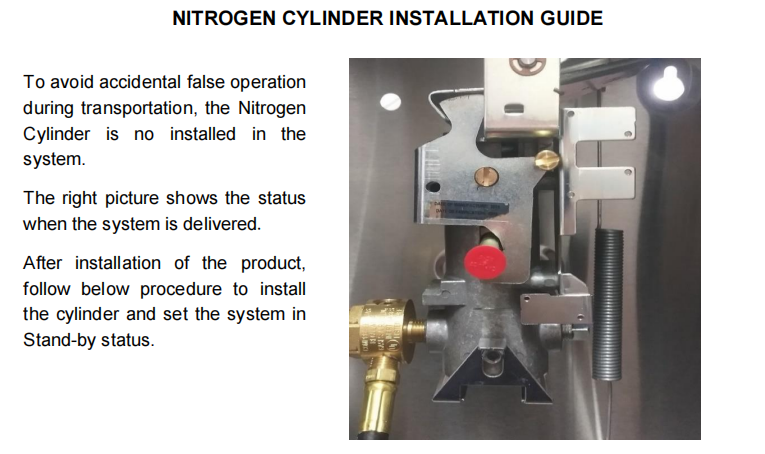

NITROGEN CYLINDER INSTALLATION GUIDE ：

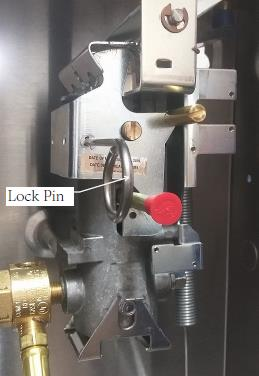

1. Insert the lock pin to secure the system
2.Unscrew the safety cover from the nitrogen cylinder

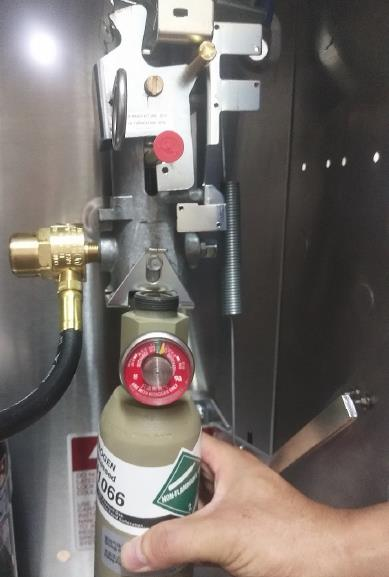

3.Slide in the nitrogen cylinder to match the screw thread on the release pipe, turn in the arrow direction to connect with the pipe. Then flip down the tension lever.
4.Take off the lock pin to set the system in Stand-by status. Cover the release assembly.
