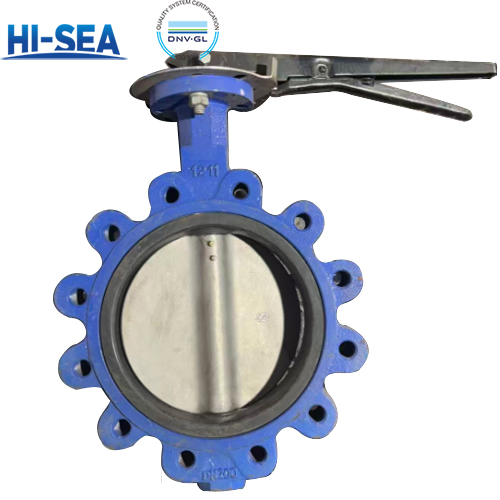

Marine Hand Lever Butterfly Valve

Marine Hand Lever Butterfly Valve is simple in structure, small in size and light in weight, and consists of only a few parts. And it can be opened and closed quickly by only rotating 90°, which is easy to operate, and at the same time, the valve has good fluid control characteristics. When the butterfly valve is in the fully open position, the thickness of the butterfly plate is the only resistance when the medium flows through the valve body, so the pressure drop generated by the valve is very small, so it has good flow control characteristics.

Overview

Applications:

Used in sulfuric acid industry gas pipeline: furnace blower inlet and outlet, relay fan inlet and outlet, electric desorption tandem and interconnecting valve, S02 main blower inlet and outlet, converter regulation, preheater inlet and outlet, etc. to regulate and cut off the use of gas volume.

Advantages:

1. Small size, light weight, light operation, easy to install.

2. The clever wedge design makes the valve have the automatic sealing function of the tighter the valve is closed, with compensatory and zero leakage between sealing surfaces.

3. Replacement of parts material can be applied to a variety of media, and can be lined with anti-corrosion (lined with F46, GXPP, PO, etc.).

Drawing:
